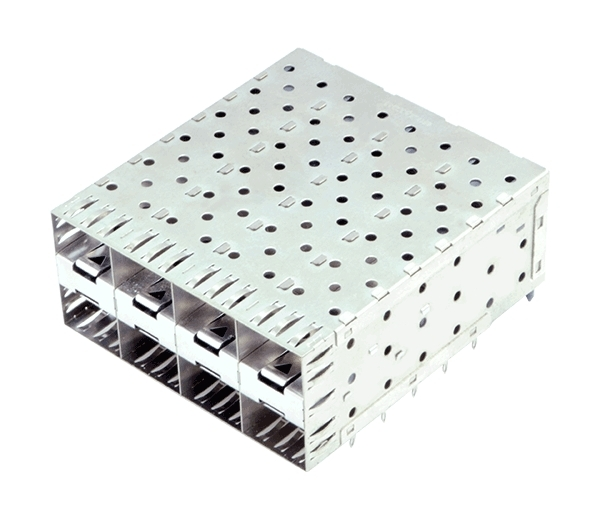

    KLS12-SFP-024 SFP 2x4 Press-Fit Connector

    Environmental:
    1.Contact Resistance:40 Milliohms MAX Initial.
    2.Dielectric Withstanding Voltage:750V AC/MAX.
    3.Insulation Resistance:1000mΩ Min.
    4.Ratings Current:0.5 Amps MAX.
    5.Ratings Voltage:120 volts AC.
    6.Operation:-40℃~+85℃.
    7.Storage:-55℃~+105℃.

    Mechanical:
             1.Contact:Phosphor Bronze C5210-EH T=0.20mm.
             2.Connector Housing:LCO UL 94V-0. Color:Black.
             3.Moulded Inset:PA46+30% GF UL 94V-0. Color:Black.
             4.Cage:Cpopper Alloy C7701 T=0.25MM.
             5.Light Pipes: Polycarbonate. UL 94V-0. Color:Clear
             6.Light Pipe Housing:PBT+30%.G.F UL 94V-0.Color:Black.
    Plated:
             1.Contact Area: Plating Gold 15u"MIN Over 50~80u"Nickel
    Mechanical Requirement:
              2.Durability: 100 Cycles MIN.
              3.Insertion And Extraction Force: 40N Max &11.5N MAX
