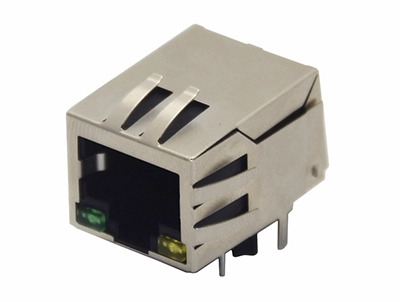

KLS12-TL002R 100Base 1x1 Tab-Down
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS12-TL002R
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS12-TL002R 100Base 1x1 Tab-Down
Electrical Specifications:
1.Insulation resistance: 500 megohms MIN @500VDC.
2.Contact resistance: 50 milliohms Max.
3.Turn Ratio:1~2:J1~J2 =1CT:1CT(±2%).
3~6:J3~J6 =1CT:1CT(±2%).
4.OCL:350uH Min.at 100KHz 100mV 8mA DC.
5.Insertion Loss:-1.0 dB Max 1MHz to 100MHz.
6.Return loss:-16dB Min From 1MHz to 30MHz;
-14dB Min From 30MHz to 60MHz.
-10dB Min From 60MHz to 80MHz.
7.Cross talk: -40dB Min From 1MHz-30MHz;
-35dB Min From 30MHz-60MHz;
-30dB Min From 60MHz-100MHz;
8.CMR: -35dB Min From 1MHz-100MHz;
9.Hi-Pot: 1500V AC 6S 1mA
