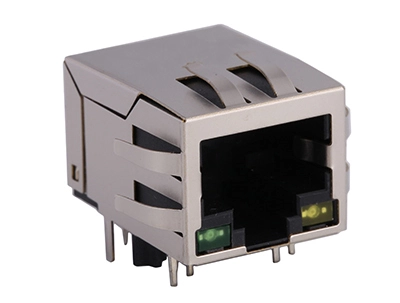

KLS12-TL010 100 Base 1x1 Tab-down RJ45
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS12-TL010
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS12-TL010 100 Base 1x1 Tab-down RJ45
Electrical:
1.Voltage ratign:125V AC.
2.Insulation resistance: 500 megohms MIN @500VDC.
3.Contact resistance: 50 milliohms Max.
4.T/R: TX=1CT:1CT(?2%) & RX=1CT:1CT(?2%).
5.OCL:350uH Min.at 100KHz 100mV 8mA DC.
6.Insertion Loss:-1.0 dB Max 1MHz to 100MHz.
7.Return loss:-16dB Min From 1MHz to 30MHz;
-14dB Min From 30MHz to 60MHz.
-10dB Min From 60MHz to 80MHz.
8.Cross talk: -40dB Min From 1MHz-30MHz;
-35dB Min From 30MHz-60MHz;
-30dB Min From 60MHz-100MHz;
9.CMR: -35dB Min From 1MHz-100MHz;
10.Hi-Pot: 1500V AC 6S 1mA
