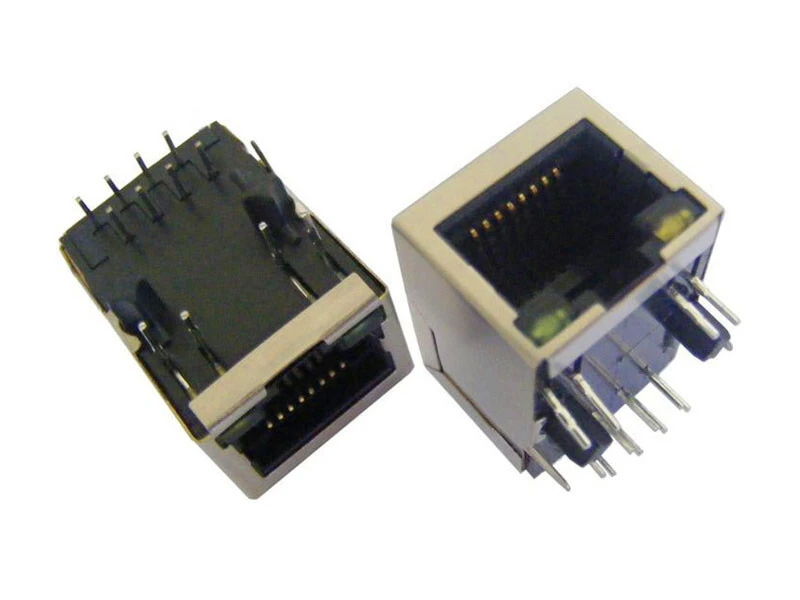

    KLS12-TL051 10/100 BASE 1x1Tab-Down RJ45

    1.Turn Ratio(+/-2%):
    TX=1CT :1CT RX=1CT:1CT
    2.Inductance OCL:
    350uH Min @100KHz/0.1V ,8mA DC Bias
    3.Insertion Loss:
    -1.0dB Max @1.0-100MHz
    4.Return Loss:
    -20dB Min @1-10MHz
    -16dB Min @10-30MHz
    -12dB Min @30-60MHz
    -10dB Min @60-100MHz
    5.Cross talk:
    -40dB Min @1-30MHz
    -35dB Min @30-60MHz
    -30dB Min @60-100MHz
    6.Common Mode Rejection:
    -30dB Min @1-50MHz
    -20dB Min @50-150MHz
    7.HIPOT TEST :1500V AC 1mA 6S
    8.OPERA TING TEMPERA TURE RANGE:0-70°C
