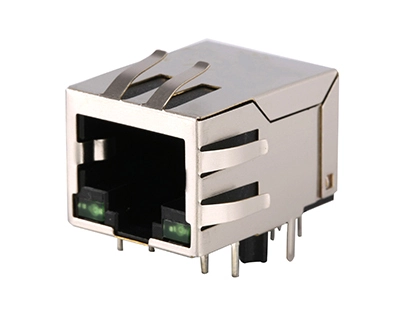

    KLS12-TL098 100 Base 1x1 Tab-Down RJ45

    Electrical Specifications:
    Insertion Loss: 1-100MHZ -1.0dB MAX
    Return Loss: 1-30MHZ -16.0dB MIN
    30-60MHZ -14.0dB MIN
    60-80MHZ -10.0dB MIN
    Cross Talk: 1-30MHZ -40.0dB MIN
    30-60MHZ -35.0dB MIN
    60-80MHZ -30.0dB MIN
    CMR: 1M-100MHZ -35dB MIN
    Hi-Pot: 1500v AC 6S 1mA
    OCL:350uH MIN @ 100KHZ 100mV 8mA DC
    Contacts: 0.35mm thick phos bronze plated with 6u' gold in contact area
    Turn Ratio: 1CT:1CT+/-3%
    Housing Material:PBT Black
    Operating temperature range:-40℃-+85℃
