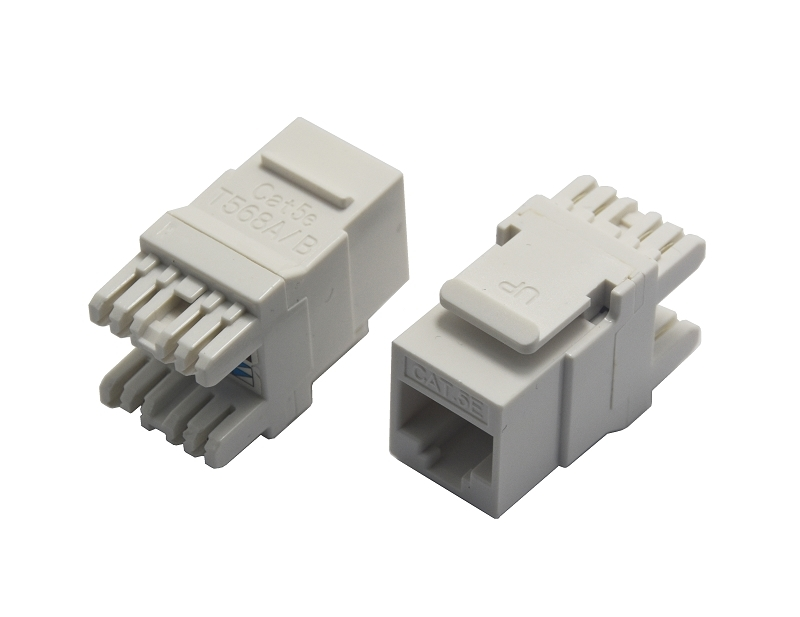

KLS12-TM8805 AMP Model RJ45 keystone Jack
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS12-TM8805
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS12-TM8805 AMP Model RJ45 keystone Jack
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL:
Storage: -40° C ~ +85°C
Operation: 0° C ~ 70° C
Conform to TIA/EIA 568B Category 5e
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL:
1. Housing material: PC UL94V-0
2. Inser material: Flame retardancy ABS UL94V-0
3. PCB material: FR-4 Thickness: 1.6mm
4. Contact material: Phosphor bronze stamp PIN T=0.35mm
5. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating
6. Wire: AWG 24-26
