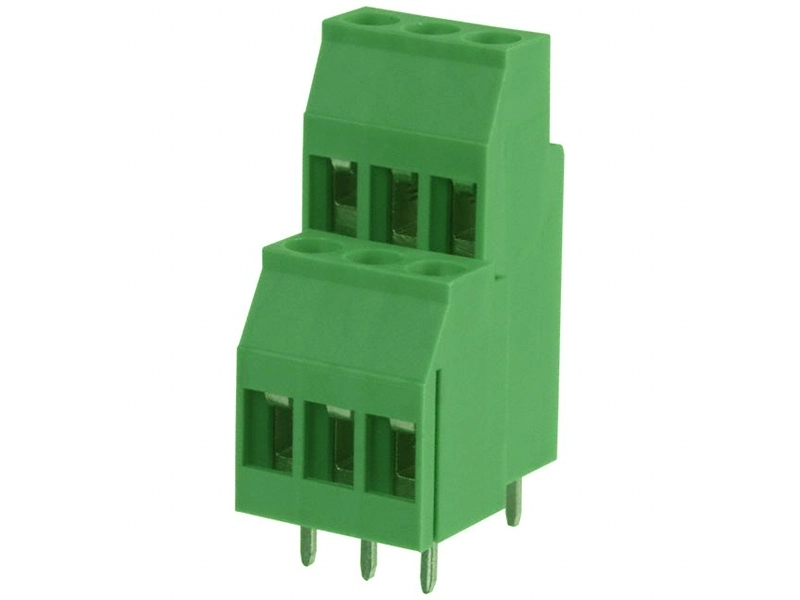

KLS2-132A-5.00&5.08 CONN TERM BLK VERT 5.00&5.08mm PCB
Electrical
Rated voltage:300V
Rated current:20A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:26-12AWG2.5mm²
Material
Screws: M3steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (10.6lb.in)
Strip length: 6~7mm
