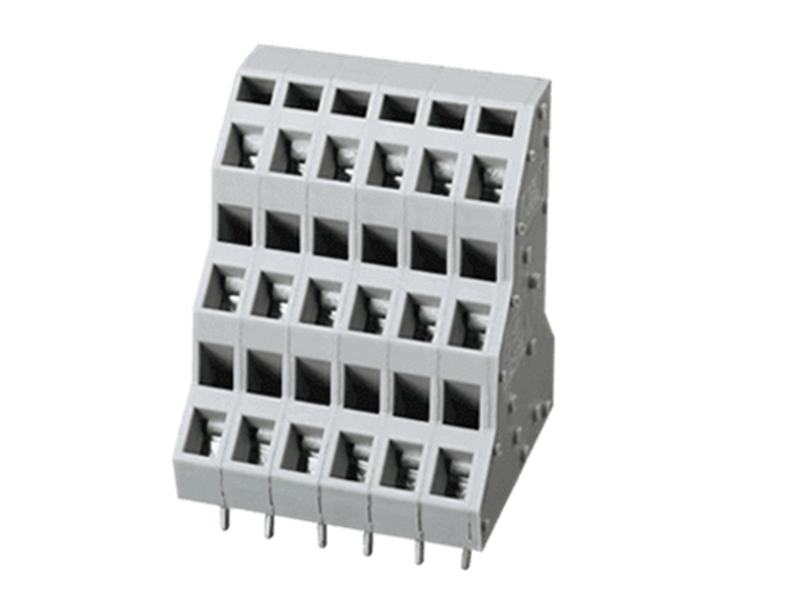

    KLS2-246-7.50 Spring Clamp Terminal Block 7.50mm pitch

    Material
    Housing:      PA66 , UL94V-0
    Pin header:  Brass, Tin plated
    Wire guard: Stainless steel

    Electrical
    Rated voltage:    300V
    Rated current:    10A
    Wire range:      26~14AWG  2.5mm²
    Contact Resistance: 20 m Ω
    Insulation resistance:  500MΩ/DC500V
    Withstand voltage:      AC2000V / 1 min

    Mechanical
    Temp. Range:   -40 ° C ~ + 105 ° C
    Soldering:       250° C±5° C   for   5S
    Strip length:     5~6mm
