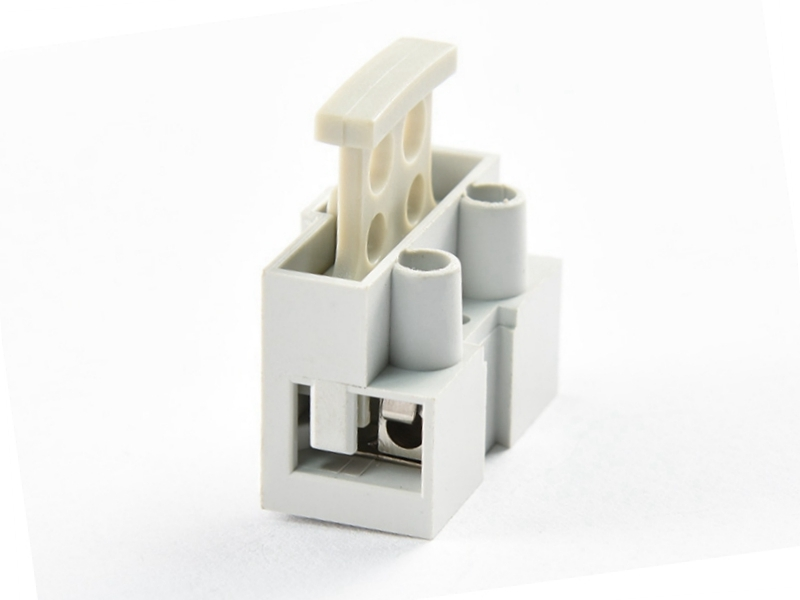

    KLS2-510EW-1P Fuse Terminal Block 1 Poles

    Electrical :
    Rated voltage: 250V
    Rated current: 10A
    Contact resistance: 20mΩ
    Insulation resistance: 5000MΩ/1000V
    Withstanding Voltage: AC2500V/1Min
    Wire range: 18-12AWG 2.5mm²

    Material
    Screws: M3 steel Zinc plated
    Contact: Brass
    Pin header: Brass, Ni plated
    Housing: PA66, UL94V-0

    Mechanical
    Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
    Torque: 0.5Nm (4.5lb.in)
    Strip length: 7-8mm
