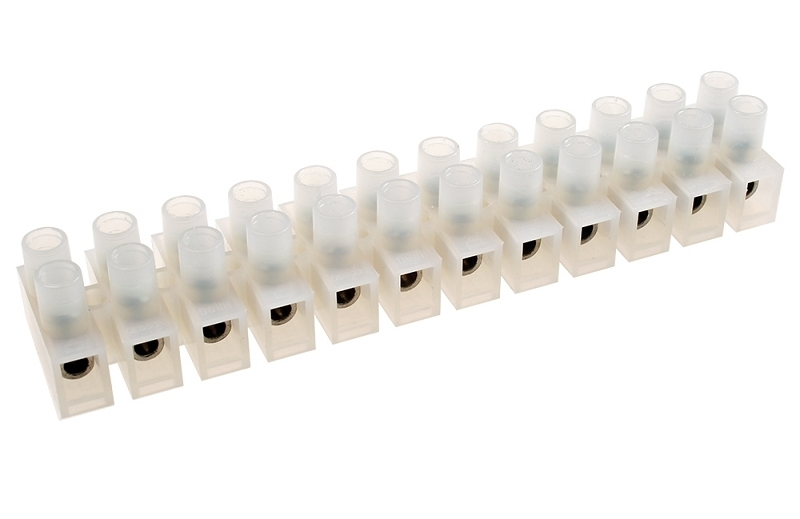

    KLS2-6200 Pitch 8.0mm with The plane

    Order Information
    KLS2  - 6200 DS- 12P - 9  S

    6200: Pitch 8.0mm with The plane
    DS:    囗: Without shrapnel       DS: With Shrapnel
    12P:  Pin Number
    9:      White Color
    S:      Slot Serew

    Material
    Screw: M3 Steel, any Zinc plated
    Terminal: Brass, Ni plated
    Housing: PA66, UL94V - 2

    Electrical
    Rated Voltage:    450V
    Rated current:     17.5 A
    Wire Range:        1.5 mm²

    Mechanical:
    Temperature Range: - 30 ℃ ~ + 105 ℃
    Strip length: 5.0 mm
