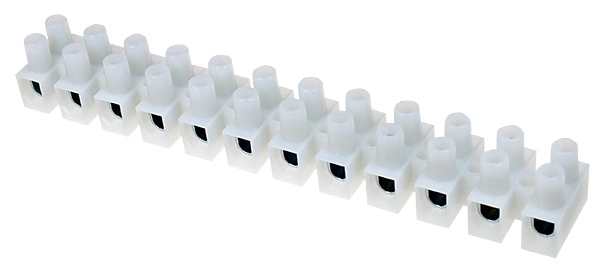

KLS2-6816 Pitch 16.5mm with H1.2mm
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-6816
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-6816 Pitch 16.5mm with H1.2mm
Order Information
KLS2 - 6816 DS - 12P - 9 S
6816: Pitch 16.5mm with H1.2mm
DS: 囗: Without shrapnel DS: With Shrapnel
12P: Pin Number
9: White Color
S: Slot Serew
Material
Screw: M5 Steel, any Zinc plated
Terminal: Copper alloy, Ni plated
Housing: PA66, UL94V - 2
Electrical
Rated Voltage: 500V
Rated current: 101 A
Wire Range: 25 mm²
Mechanical:
Temperature Range: - 30 ℃ ~ + 105 ℃
Strip length: 11.5 mm
