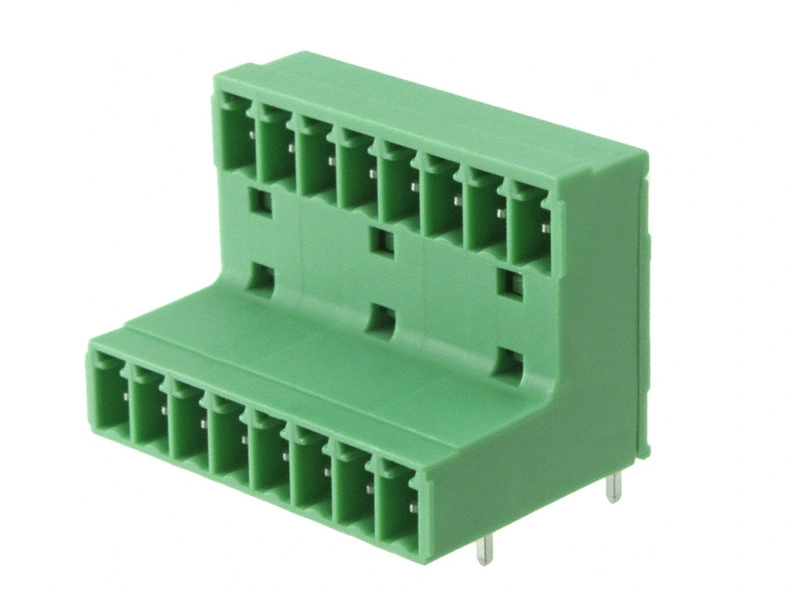

    KLS2-EDBR-3.50&3.81 TERM BLOCK HDR 90DEG 3.50&3.81mm

    Electrical
    Rated voltage: 300V
    Rated current: 8A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/DC500V
    Withstanding Voltage: AC1600V/1Min

    Material
    Pin header: Brass,  Sn plated
    Housing: PA66, UL94V-0

    Mechanical
    Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
