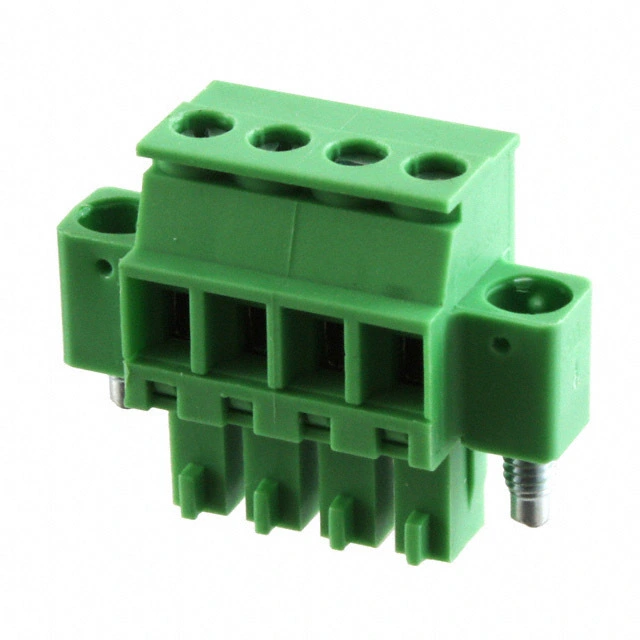

    KLS2-EDCDM-3.50&3.81 TERM BLOCK PLUG 90DEG 3.50&3.81mm


    Electrical
    Rated voltage: 300V
    Rated current: 8A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/DC500V
    Withstanding Voltage: AC1600V/1Min
    Wire range: 28-16AWG 1.5mm²

    Material
    Screws: M2 steel Zinc plated
    Pin header: Brass, Sn plated
    Housing: PA66, UL94V-0

    Mechanical
    Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
    Torque: 0.2Nm (3.54lb.in)
    Strip length: 6-7mm
