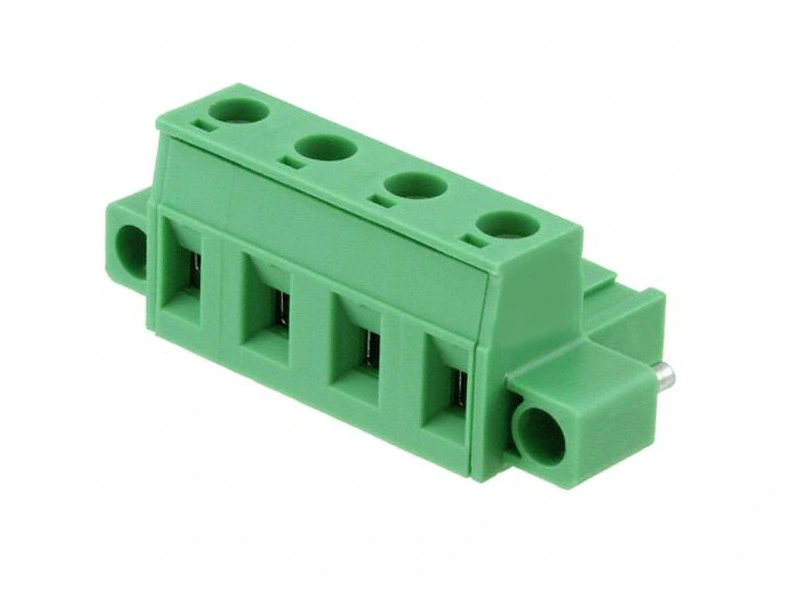

    KLS2-EDCKM-7.50&7.62 TERM BLOCK PLUG STR 7.50&7.62mm

    Electrical

    Rated voltage: 300V
    Rated current: 15A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/DC500V
    Withstanding Voltage: AC1600V/1Min
    Wire range:28-14AWG 2.5mm²

    Material
    Screws: M3 steel Zinc plated
    Contact: Brass,Ni Plated
    Pin header: Brass, Tin plated
    Housing: PA66, UL94V-0
    Mechanical
    Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
    Torque: 0.5Nm (3.54lb.in)
    Strip length: 7-8mm
