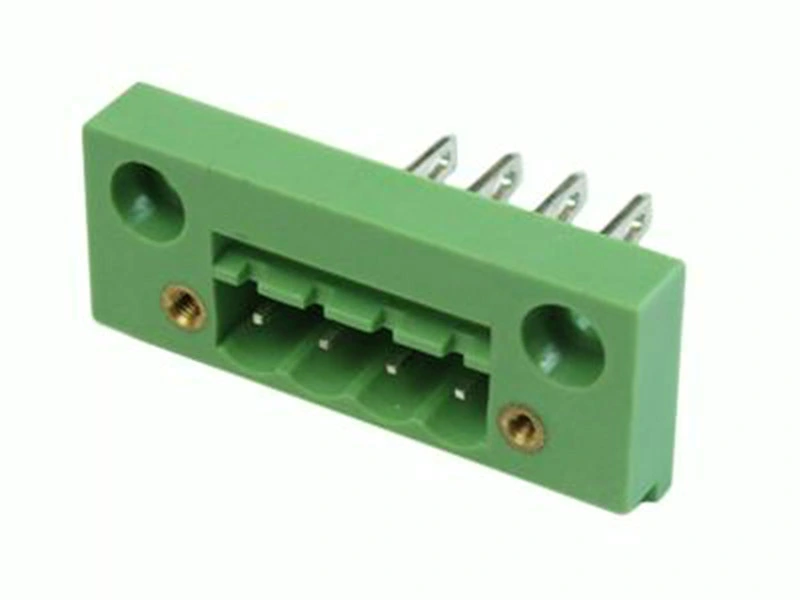

    KLS2-EDGM-5.08 TERM BLK HEADER 5.08mm GREEN Panel Mount

    Electrical

    Rated voltage: 300V

    Rated current: 18A

    Contact resistance: 20mΩ

    Insulation resistance: 500MΩ/DC500V

    Withstanding Voltage: AC1600V/1Min

    Wire range:28-14AWG 2.5mm²


    Material

    Screws: M3 steel Zinc plated

    Contact: Brass,Ni Plated

    Pin header: Brass, Tin plated

    Housing: PA66, UL94V-0


    Mechanical

    Temp. Range: -40ºC~+105ºC

    MAX Soldering: +250ºC for 5 Sec.

    Torque: 0.5Nm (3.54lb.in)

    Strip length: 7-8mm
