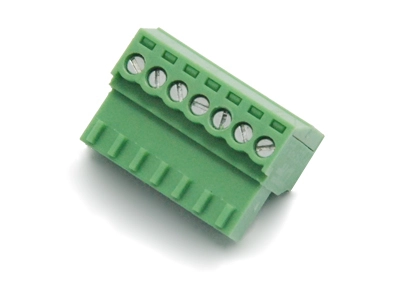

KLS2-EDK-2.54 Pluggable Terminal Block 2.54mm Pitch
Electrical :
Rated voltage: 125V
Rated current:4A
Contact resistance:20mΩ
Insulator Resistance:5000MΩ/1000V
Withstanding Voltage: AC1250V/1Min
Wire range:28-20 AWG 0.5MM2
Temp. Range:-40ºC~+105ºC
Material:
Housing: PA66, UL94V-0
Pin header:Phosphor bronze, Zinc Plated
