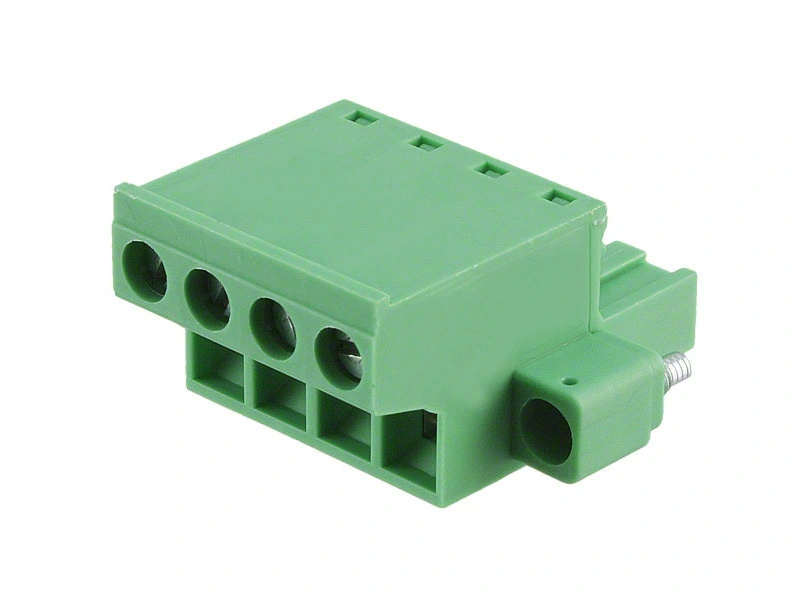

    KLS2-EDKCM-5.08 TERM BLOCK PLUG STR 5.08mm

    Electrical


    Rated voltage: 300V
    Rated current: 15A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/DC500V
    Withstanding Voltage: AC2000V/1Min
    Wire range: 28-14AWG 2.5mm²
    Material

    Contact: Brass,Sn Plated
    Housing: PA66, UL94V-0


    Mechanical
                                                                                                                                                                                                                      Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
    Torque:0.6Nm (3.6lb.in)
    Strip length: 7-8mm
