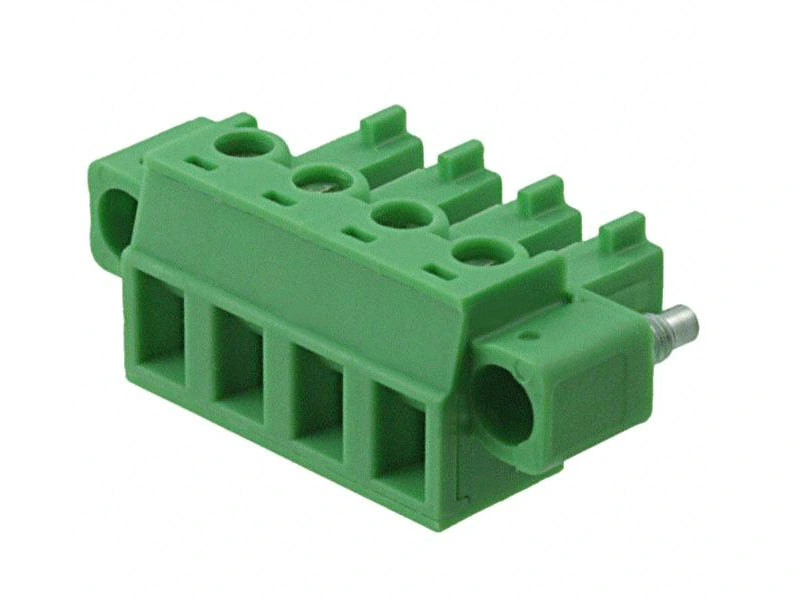

    KLS2-EDKFFM-5.08 TERM BLOCK PLUG STR 5.08mm

    Electrical


    Rated voltage: 300V
    Rated current: 8A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/DC500V
    Withstanding Voltage: AC2000V/1Min
    Wire range: 28-16AWG 1.5mm²
    Material
    Contact: Brass,Sn Plated
    Pin header: Brass, Tin plated
    Housing: PA66, UL94V-0


    Mechanical
    Torque: 0.2Nm (2lb.in)
    Strip length: 6-7mm
