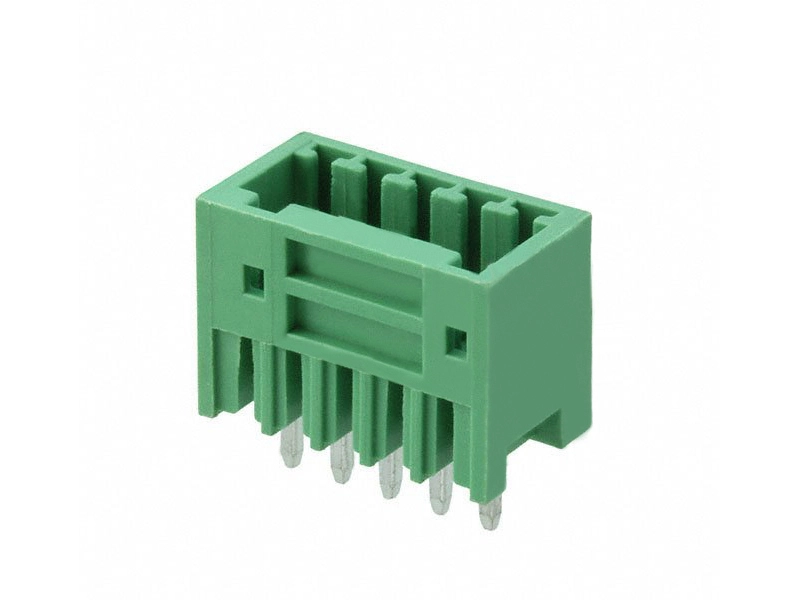

KLS2-EDV-2.50 TERM BLOCK HDR 180DEG 2.50mm
Electrical
Rated voltage: 150V
Rated current: 5A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1500V/1Min
Material
Contact: Brass,Sn Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
