KLS1-503 1.27mm Pitch Edge Card Connector Slot
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-503
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

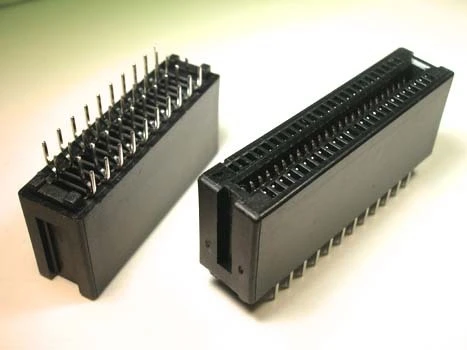

1.27mm Pitch Edge Card Connector Slot KLS1-503
Order Information
KLS1-503-XX-R
503-Without Ear
XX-No.of 04-68pin
S-Straight pin R-Right Angle Pin
Material:
Housing: Glass filled PBT UL94V-0
Contacts: Brass
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 1 AMP
Voltage Rating: 250 VAC
Insulator Resistance: 1000M Ohm min. at DC 500V DC
Contact Resistance: 30m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
Straight pin size:
