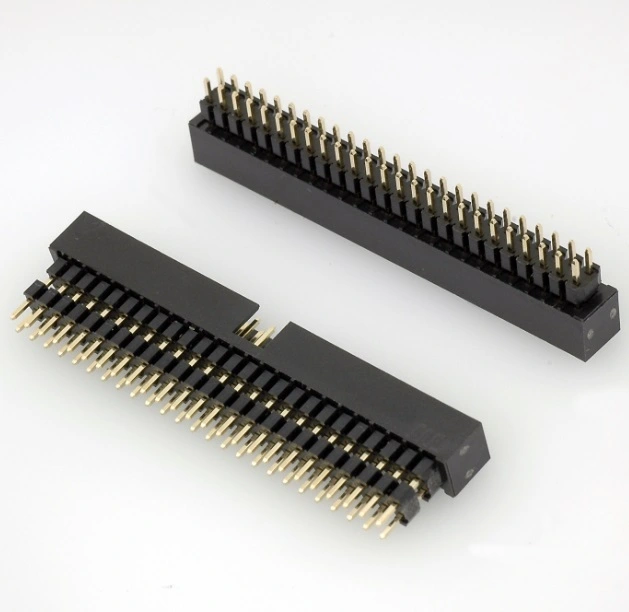

2.54mm Pitch Box Header Connector With Latch
Order Information
KLS1-202K-XX-S-B
XX-No.of 06~64pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black
Material:
Contact:Brass,Au or Sn Over Ni
Insulator:Polyester(Ul94V-0)
Standard:PA6T
Max.Processing Temp:230oC for 30-60 seconds
(260oC for 10 seconds)
Technical parameters:
Rated Current:30AMP
Contact resistance:20mΩ, max
Withstand voltage:1000V AC/DC
Insulation resistance: 1000MΩ, min
Operating Temperature:-40oC ~ 105oC
