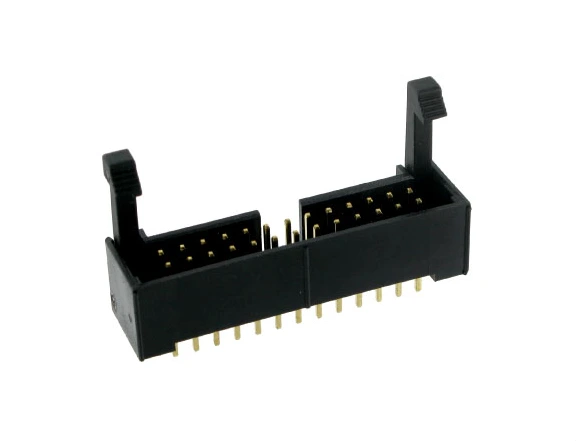

KLS1-202F 2.54mm Pitch Box Header Connector With Latch
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-202F
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
2.54mm Pitch Box Header Connector With Latch
Order Information
KLS1-202F-XX-S-B
XX-No.of 06~64pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
D size-14.6mm D1-10.6mm
Material:
Housing: PBT UL94V-0 / PA6T
Contacts: Brass
Gold plated: 2u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
