KLS1-SIM-015B 2.54mm Pitch SIM Card Connector 6 Pin H1.7mm
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-SIM-015B
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

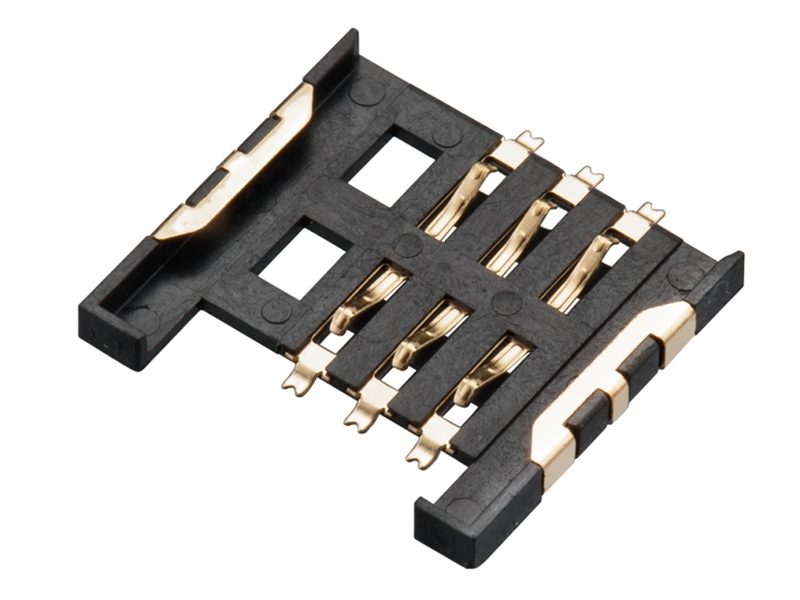

2.54mm Pitch SIM Card Connector 6 Pin H1.7mm KLS1-SIM-015B
Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 5V (AC.DC) Max
Current Rating: 10mA (AC.DC) Max
Withstand voltage: 500V AC/1Minute
Insulation resistance: ≥1000ΜΩ Min At 500V AC
Contact resistance: ≤30MΩ
Life: ＞10000 Cycles
Operating Temperature: -45ºC~+105ºC
