KLS1-903D 3.96mm Pitch Edge Card Connector With Ear
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-903D
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

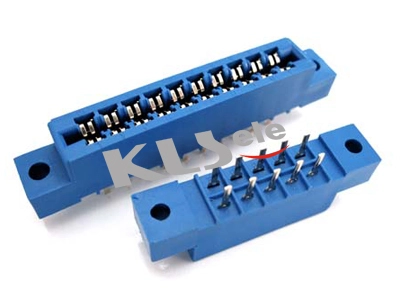

3.96mm Pitch Edge Card Connector With Ear KLS1-903D
Order Information
KLS1-903D-XX-L
903D-Dip 180 type
XX-No,of 10~100 pin
L-Blue B-Black
Material:
Housing: Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 2 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max. at DC 100mA
Withstanding Voltage:1000V AC /rms 50Hz for 1 minute
Operating Temperature: -45ºC~+105ºC
