KLS-COA1 CATV Outdoor Amplifie
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS-COA1
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

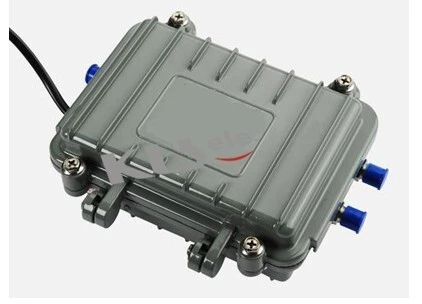

KLS-COA1 CATV Outdoor Amplifie
1.Suitable for
trunk or branch amplification
2.Adopting small module current design,
low noise, high output level
3.Gain and slop adjustment in big range
high precision
4.Aluminium die-casting housing,
water-proof,dustproof, good shielding
Key
Parameters
ITEM | PARAMETER |
Frequency range(MHz) | 45~750 |
Nominal gain(dB) | 30 |
Flatness in band(dB) | ±0.75 |
Max.output level(dBμV) | 118 |
Norminal input level(dBμV) | 72 |
Gain adjustment range(dB) | 0~20 |
Slop adjustment range(dB) | 0~18 |
Noise factor(dB) | ≤7 |
Testing port(dB) | -10 |
Return loss(dB) | ≥12 |
Thunderstroke immunity(KV) | 5(10/700μS) |
power supply | AC40V~60 V or AC220V±10%50Hz |
power consumption(W) | 5W
/ 6W Or 10W |
Dimension(mm) | 170X135X60 /
223X180X85 |
1.Suitable for trunk or branch
amplification in CATV systems
2.Manual gain and slop
adjustable
3.large range high precision for slop
adjustment
4.Adopting imported power
module(philip)
5.Aluminum die-casting housing,good
shielding quality
6. 550MHz,750MHz,860MHz
optional
Key
Parameters
ITEM | PARAMETER |
Frequency range(MHz) | 45~750 |
Nominal gain(dB) | 30 |
Flatness in band(dB) | ±0.75 |
Max.output level(dBμV) | 120 |
Norminal input level(dBμV) | 72 |
Gain adjustment range(dB) | 0~20 |
Slop adjustment range(dB) | 0~18 |
Noise factor(dB) | ≤6 |
Testing port(dB) | -20 |
Return loss(dB) | ≥16 |
Thunderstroke immunity(KV) | 5(10/700μS) |
power supply | AC40V~60 V or AC220V±10%50Hz |
power consumption(W) | 15 |
Dimension(mm) | 270X195X85 |
