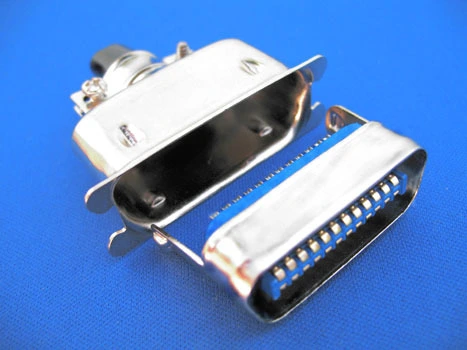

    KLS1-179-57A Centronic Connector With solder type

    Centronic Connector With Solder Type

    Order Information
    KLS1-179-57A-XX-M-L
    XX-No.of pin (14,20,26,36,50Pin)
    M-Male    F-Female
    L-Blue      B-Black


    1.Material:

        1.1 Insulator : High temperature thermoplastic with g.f,UL94v-0

        1.2 Contact : Copper alloy,t=0.25mm

        1.3 Shell : Spcc,t=0.40mm,50P Front-shell t=0.60mm

    2.Specification:

        2.1 Current rating : 1 A Max.

        2.2 Dielectric withstanding voltage : 750 V(ac) for 1 min.

        2.3 Contact resistance : 30 mΩ Max.

        2.4 Insulation resistance : 1000 MΩ Min.

        2.5 Total mating force : 9.0 Kgf Max.

        2.6 Total unmating force : 5.0 Kgf Min.

        2.7 Temperature range : -55°C~85°C
