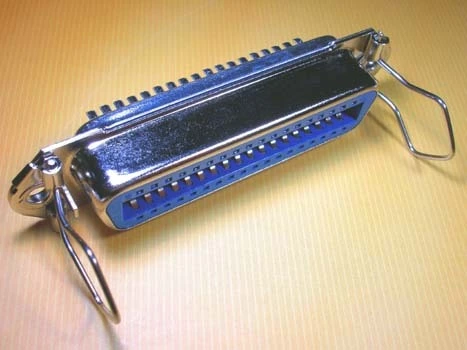

    KLS1-180-57B Centronic Connector With solder type

    Order Information
    KLS1-180-57B-XX-M-L
    XX-No.of pin (14,20,26,36,50Pin)
    M-Male    F-Female
    L-Blue      B-Black


    1. MATERIALS ANDFINISH
      1.1 Insulator: High temperature thermoplastic with g.f, UL 94V-0
      1.2 Contacts: Copper Alloy, t=0.25mm
      1.3 Shell: Spcc, t=0.40mm, 50P Front-shell, t=0.60mm
    2. Specifications
      2.1 Current Rating:1A MAX.
      2.2 Dielectric Withstanding
      2.2 Voltage:750 V (ac)  For 1 Min
      2.3 Contact Resistance:30mΩ MAX.
      2.4 Insulation resistance: 1000mΩ Max
      2.5 Total mating force 9.0 Kgf Max
      2.6 Total unmating force: 5.0 kgf Min
      2.7 Temperature range:  -40℃ ~ 85℃
