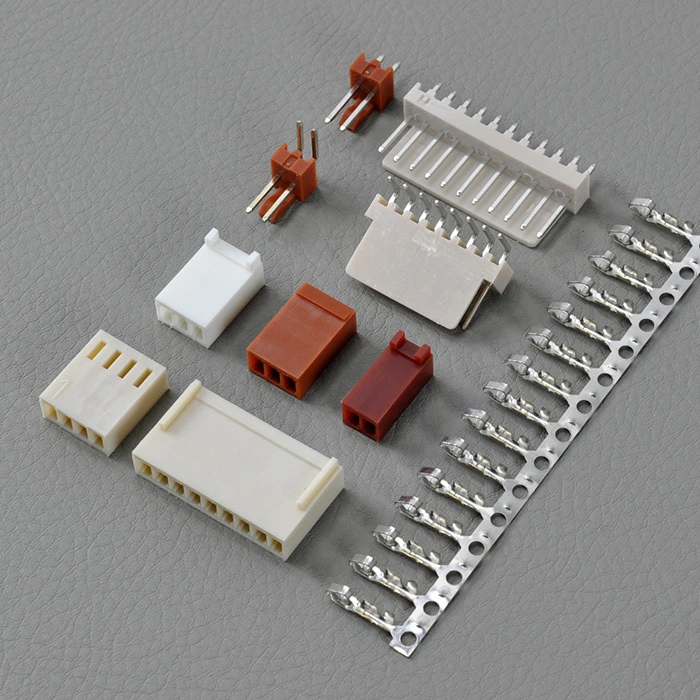

2.54mm Molex 2510 Type Wire To Board Connector
Electrical Specification:
Rated Voltage: 250V AC.DC
Rated Current: 3A
Contact Resistance: 0.02 Ohm max
Insulation Resistance: 1000M Ohm min
Withstand voltage: 1000V AC / MIN
Temperature range for usage: -25ºC ~ +85ºC
P.C board thickness: 0.8 ~ 1.6mm
Material:
Housing: PA66 UL94V-2
Contacts: Brass or Phosphor Bronze
Plating: Tin 50u "over 100u" nickel
Wire range: AWG # 30 ~ # 22
