KLS1-XL1-6.35 Pitch 6.35mm Molex 42021 Wire To Board Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-XL1-6.35
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

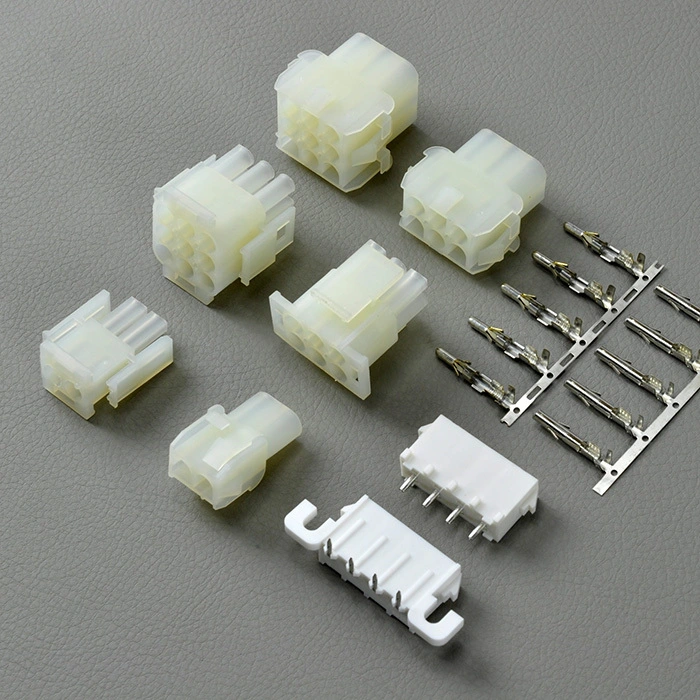

6.35mm Molex 42021 Wire To Board Connector
Order information:
KLS1-XL1-6.35-2X02-H
Pitch:6.35mm
Pins:1=Single layer 2=Double layer 3=Three layer
Pin numbur:2~15 pins
MH=Male Hosing / FH=Female Hosing / MT=Male Terminal / FT=Female Terminal
S=Straight male pin / R= Right angle male pin
Spesifications:
1、Poles: 2 to 6/10P 2x2to2x3p 2x3to5x3p
2、Current rating: 10~8A AC,DC
3、Voltage rating: 300V AC,DC
4、Temperature range: -25℃ ~ +85℃
5、Contact resistance:≤20mΩ
6、Insulation resistance: ≥1000MΩ
7、Withstand voltage: 1500V AC/minute
8、Applicable wire: AWG #20 to #14
9、Applicable PC board thickness: 1.6mm
