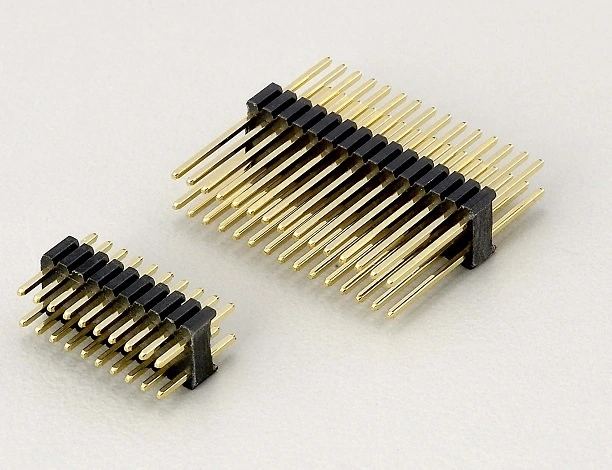

KLS1-207D 1.27x2.54mm Pitch Male Pin Header Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-207D
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-207D 1.27x2.54mm Pitch Male Pin Header Connector
Order Information
KLS1-207D-XX-S
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
