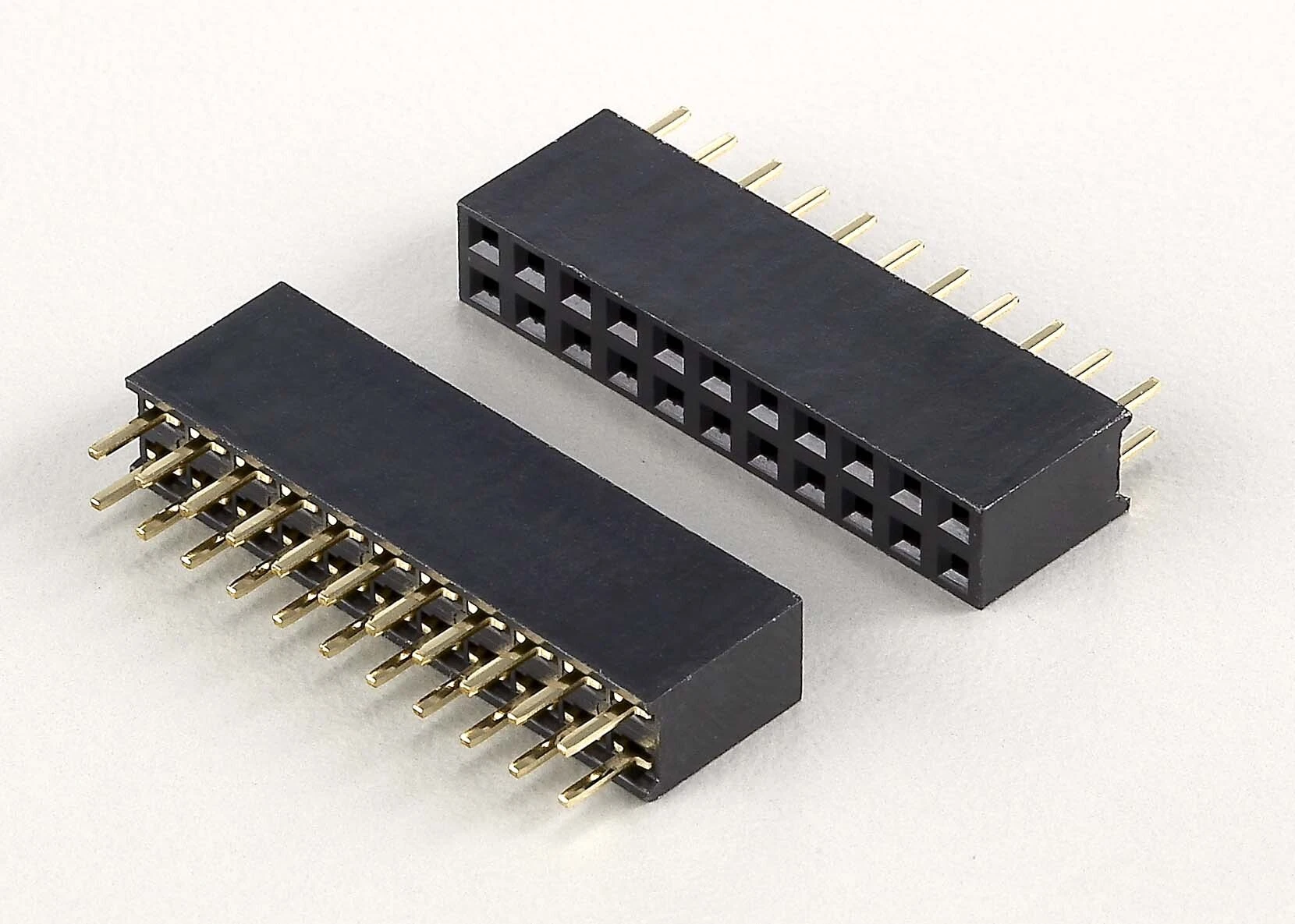

KLS1-208 2.54mm Pitch High 8.4mm Female Header Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-208
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-208 2.54mm Pitch High 8.4mm Female Header Connector
Order Information Material: Housing: 30% Glass filled PBT UL94V-0
KLS1-208-1-XX-R
1-Single layer 2-Double layer 3-Three layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Contacts: Brass or Phosphor Bronze
Plating: Selective gold plated:0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
