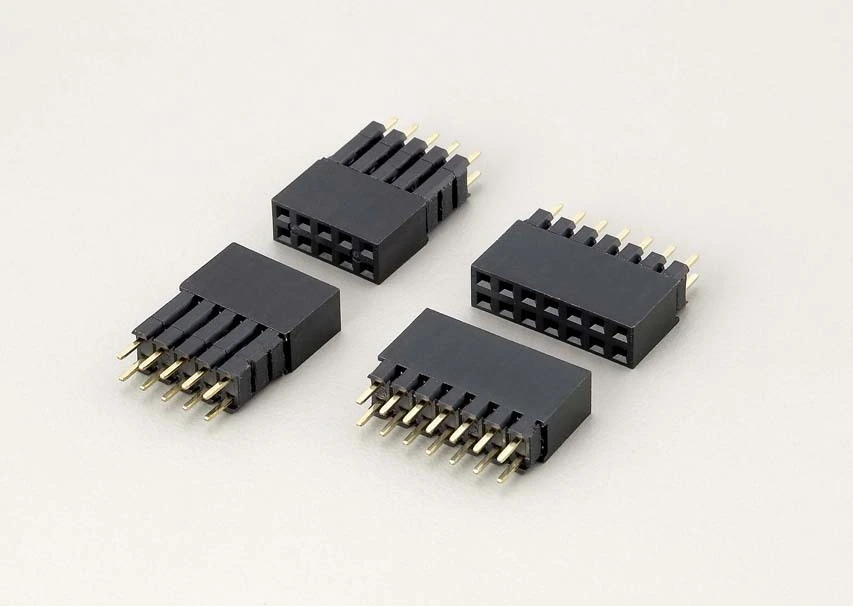

    KLS1-208X 2.54mm Pitch High 11mm 13.5mm 16mm Female Header Connector

    Order Information
    KLS1-208X-1-XX-S-L1*L2
    1-Single layer   2-Double layer
    XX-Total pin number  (No.of 1~80pin)
    S-Straight


    Material:
    Housing: 30% Glass filled PBT UL94V-0
    Contacts: Brass or Phosphor Bronze
    Plating: Selective gold plated:0.8u" over 50u" nickel
    Electrical Characteristics:
    Current Rating: 3 AMP
    Insulator Resistance: 5000M Ohm min. at DC 500V
    Contact Resistance: 20m Ohm max. at DC 100mA
    Operating Temperature: -45ºC~+105ºC
