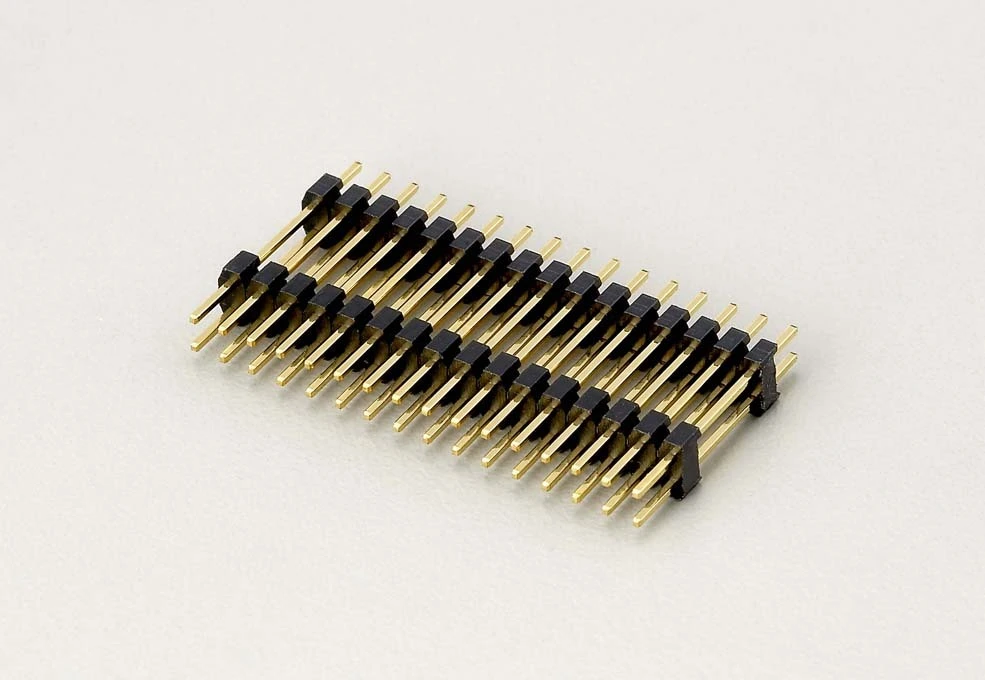

KLS1-218B 2.0mm Pitch Pin Header Connector Dual Insulator Plastic Type
Order Information Material:
KLS1-218B-1-XX-S-L1*L2*L3
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
L1 Size / L2 Size / L3 Size
Housing: NYLON-6T , UL94V-0
Contacts: Brass
Plating: Selective gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
