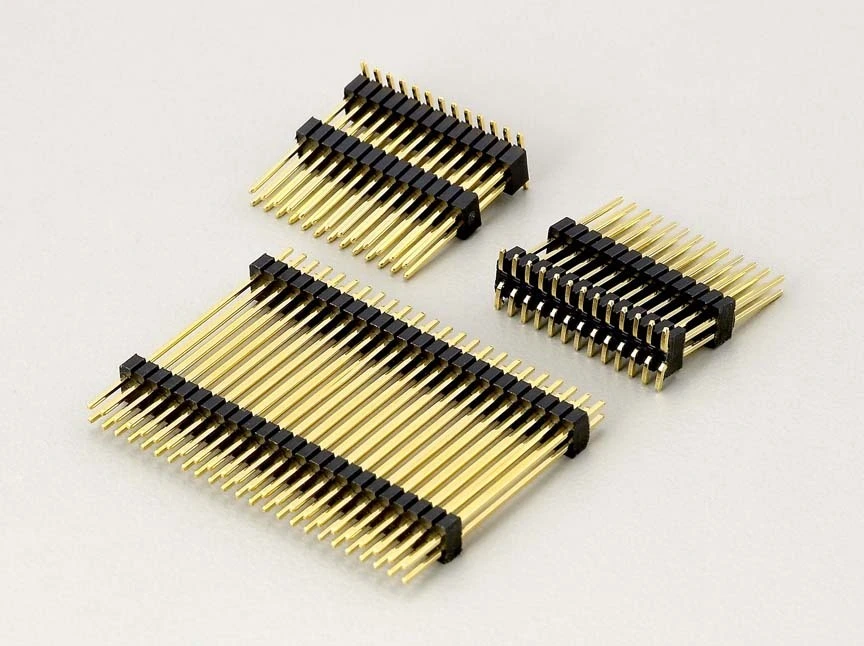

    KLS1-218C 1.27mm Pitch Pin Header Connector Dual Insulator Plastic Type

    Order Information
    KLS1-218C-1-XX-S-L1*L2*L3
    1-Single layer  2-Double layer
    XX-Total pin number  (No.of 1~80pin)
    S-Straight Pin  R-Right Angle Pin  T-SMT Pin
    L1 Size / L2 Size / L3 Size

    Material:
    Housing: NYLON-6T , UL94V-0
    Contacts: Brass
    Plating: Selective gold plated: 0.8u" over 50u" nickel
    Electrical Characteristics:
    Current Rating: 1 AMP
    Insulator Resistance: 5000M Ohm min. at DC 500V
    Contact Resistance: 20m Ohm max. at DC 100mA
    Operating Temperature: -45ºC~+105ºC
