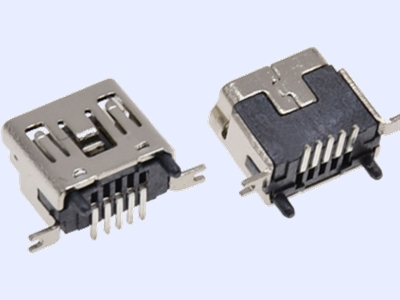

    KLS1-229-5FJ Vertical 5P B type R/A SMD Mini USB connector socket

    Material

    Housing:LCP UL94V-0,Black.
    Contact:Copper Alloy.
    Shell:Copper Alloy.
    Finish:
    Contact:Gold Plating On Contact Area.
    80u" SN Plating On Solder Tail Area,
    50u" Min,Nickel Underplating Overall.

    Electrical:
    Voltage Rating:30VAC RMS
    Current Rating:2.0A(pin 1 5);1.0A(pin 2 3 4).
    Contact Resistance:50mΩ Max.
    Insulation Resistance:100MΩ Min.
    Dielectric Withstanding Voltage:500 V AC For 1Minute.
    Operating Life:5000 Cycles.
