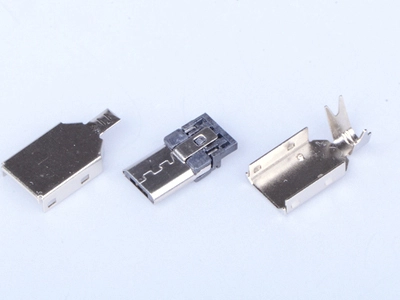

KLS1-235-3 CONN PLUG MICRO USB TYPE B Solder
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-235-3
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-235-3 CONN PLUG MICRO USB TYPE B Solder
Material:
Housing:LCP ,UL94V-0 Black.
Contact:Phosphor Bronze,T=0.20±0.01mm.
Front Shell:Stainless Steel,T=0.20±0.01mm.
Back Shell:Stainless Steel,T=0.20±0.01mm.
Clasp:Stainless Steel,T=0.40±0.01mm.
Finishes:
Contacts: Gold flashed,on Contact area.
100u-120u" Tin.Plating, on solder tails.
50u-80u" Nickel,Underplating over all.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
500 VAC far Minute.
Contact Resistance:30mΩ Max.
Insulation Resistance:1000MΩ Min at DC 500V.
Temperature Range:-55°C TO +105°C.
