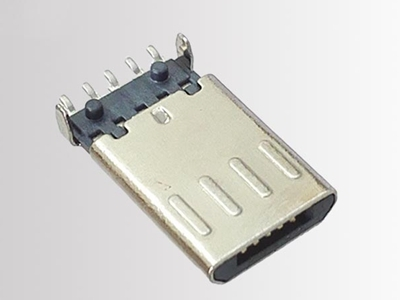

KLS1-236-5M1 CONN PLUG MICRO USB TYPE B PCB MID MOUNT
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-236-5M1
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-236-5M1 CONN PLUG MICRO USB TYPE B PCB MID MOUNT
Material
Housing:LCP,UL94V-0,Black.
Contact:Copper Alloy.
Shell:SUS 304 T=0.20.
Finish:
Contact:Gold Plating on Contact area.
80u" Sn Plating on solder tail area.
50u" Min.Nickel Under plating over all.
Electrical:
Voltage Rating:30VAC RMS.
Current Rating:2.0A(pin 1 5);
1.0A(pin 2 3 4).
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Withstanding Voltage:
500 V AC For 1 Minute.
Operating Life:5000 cycles.
Operating Temperature: -20℃~+85℃
