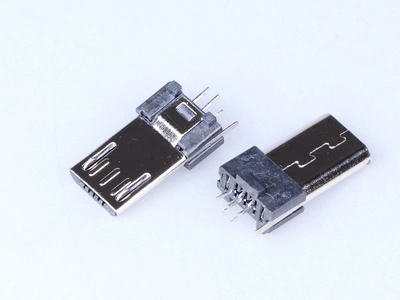

    KLS1-236-5M7 CONN PLUG MICRO USB TYPE B CLIP L8.8

    Housing:Hing Temperature Thermoplastic

                    with g.f,UL94V-0.
    Contact:Copper Alloy,t=0.20mm.
    Shell:SUS,t=0.20mm.

    Electrical:
    Current Rating:1A Max.
    Dielectric Withstanding Voltage:
                        100 V AC for 1 min.
    Contact Resistance:50mΩ Max.
    Insulation Resistance:100MΩ Min.
    Total Mating Force:3.57 kgf Max.
    Total Unmating Force:1.0 kgf Min.
    Temperature Range: -30°C Up To +80°C
