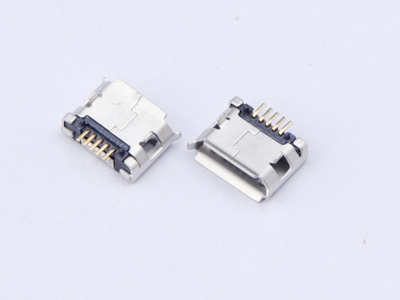

    KLS1-237 CONN RCPT 5POS MICRO USB SMD

    Material

    Housing:Hing Temperature

    Thermoplastic with g.f,

    UL94V-0,Black/White.

    Contact:Copper Alloy,t=0.20mm.

    Shell:Copper Alloy,t=0.25mm.


    Electrical:

    Current Rating:1A Max.

    Dielectric Withstanding Voltage:

                         100 V AC for 1 min.

    Contact Resistance:50mΩ Max.

    Insulation Resistance:100MΩ Min.

    Total Mating Force:3.57 kgf Max.

    Total Unmating Force:1.0 kgf Min.

    Temperature Range: -30°C Up To +80°C
