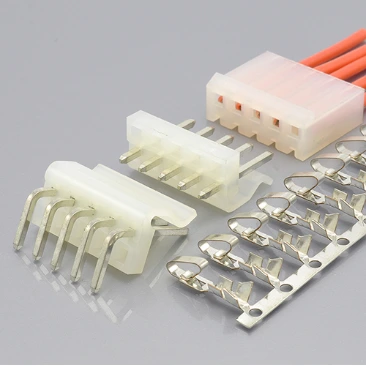

    KLS1-3.96 Pitch 3.96mm Molex 3069 Wire To Board Connector

    KLS1-3.96 Pitch 3.96mm Molex 3069 Wire To Board Connector 3

    Electrical Specification:
    Rated Voltage:   250V AC.DC
    Rated Current:  7A
    Contact Resistance:   0.02 Ohm max
    Insulation Resistance:   1000M Ohm min
    Withstand voltage:   1500V AC/MIN
    Temperature range for usage  : -25ºC~+85ºC
    P.C board thickness  : 1.6mm
    Material:
    Housing: PA66 (PA66) UL94V-2
    Contacts: Brass or Phosphor Bronze
    Plating: Tin 50u" over 100u" nickel
    Wire range  : AWG#24#18
