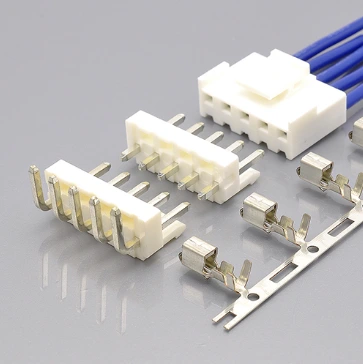

KLS1-3.96A Pitch 3.96mm JST VH Type Wire To Board Connector
Electrical Specification:
Rated Voltage: 250V AC.DC
Rated Current: 7A
Contact Resistance: 0.02 Ohm max
Insulation Resistance: 1000M Ohm min
Withstand voltage: 1500V AC/MIN
Temperature range for usage : -25ºC~+85ºC
P.C board thickness : 1.6mm
Material:
Housing: PA66 (PA66) UL94V-2
Contacts: Brass or Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#24#18
