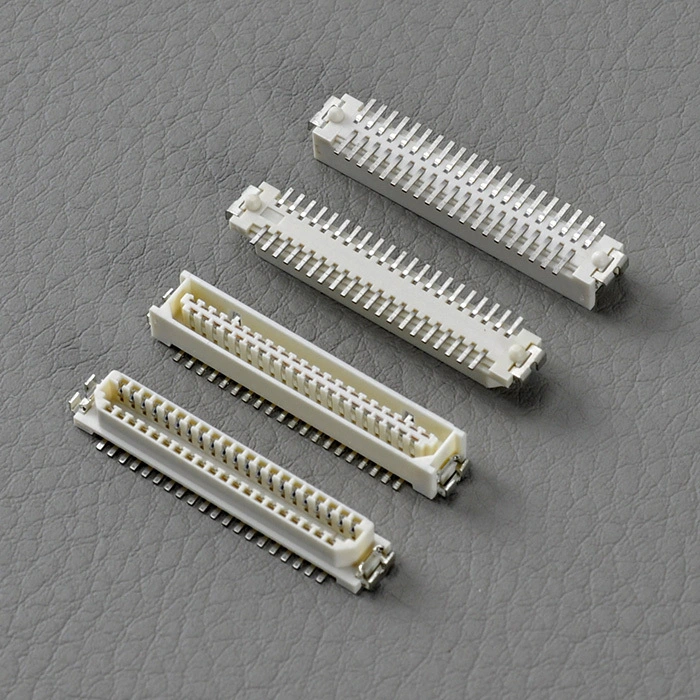

KLS1-3721 Pitch 1.0mm HRS DF9 type Board to Board Connector
Electrical Specification:
Electrical Rating:AC/DC 150V 0.5A
Insulation Resistance:500MΩ
Contact Resistance:50mΩ Max
Withstand Voltage:150V AC/minute
Operating Temperature:-40ºC~+105ºC
Material:
Housing:LCP
Contacts: Phosphor Bronze Gold-Plated
Max.Processing Temp:230ºC for 30-60 seconds
(260ºC for 10 seconds)
