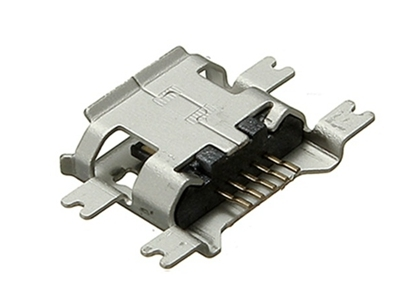

    KLS1-4240 CONN RCPT 5POS MICRO USB SMD MID MOUNT

    Material

    Housing:Hing Temperature Thermoplastic
                    with G.F,UL94V-0,Black.
    Contact:Copper Alloy,t=0.20mm.
    Shell:Copper Alloy
    Electrical:
    Current Rating:1A Max.
    Dielectric Withstanding Voltage:
                         100 V AC for 1 min.
    Contact Resistance:50mΩ Max.
    Insulation Resistance:100MΩ Min.
    Total Mating Force:3.57 kgf Max.
    Total Unmating Force:1.0 kgf Min.
    Temperature Range: -30°C Up To +80°C
