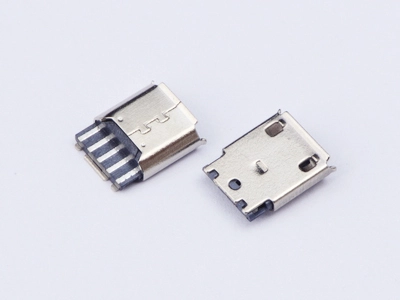

    KLS1-4254 CONN MICRO USB 5P Solder type


    Material:

    Housing:Hight Temperature Plastic,
                  UL94V-0,Black.
    Contact A:Brass T=0.20mm,Au Plated.
    Shell:Stainless Steel T=0.25mm,Ni Plated.
    Electrical:
    1.Current Current Rating:
                            1.0A(Signal PIN 2 3 4);
                            1.8A (Power PIN 1 5)
    2.Contact Resistance:40mΩ Max.
    3.Insulation Resistance:100MΩ Min.
    4.Dielectric Withstanding:100V AC Min.
    5.Durability:10000 cycles.
    6.Connector Mating forces:35N Max (3.57Kgf).
    7.Connector Unmating force:8N Min (0.30Kgf).
    8.Product Meet The Request of the RoHS
