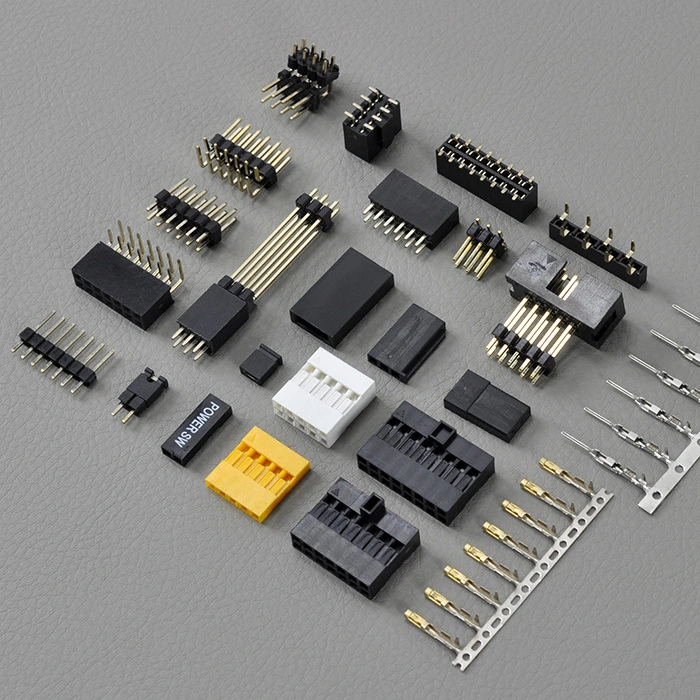

KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 1
KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 2
KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 3
KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 1
KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 2
KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 3

KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review


    KLS1-540B / KLS1-540A  Pitch 2.00mm/2.54mm Wire To Board Connector


    KLS1-540B / KLS1-540A Pitch 2.00mm/2.54mm Wire To Board Connector 4
    KLS1-540A:
    Electrical Specification:
    Current Rating: 3 AMP
    Insulator Resistance: 5000M Ohm min. at DC 500V
    Contact Resistance: 20m Ohm  max. at DC 100mA
    Withstand voltage:800V AC/MIN
    Operating Temperature: -55ºC~+105ºC

    Material:
    Housing: Nylon 66  UL94V-0
    Contacts: Phosphor Bronze
    Plating: Tin 50u" over 100u" nickel
    ----------------------------------------------------------------------
    KLS1-540B:
    Electrical Specification:
    Current Rating: 2 AMP/250V AC,DC
    Insulator Resistance: 1000M Ohm min. at DC 500V
    Contact Resistance: 20m Ohm max. at DC 100mA
    Withstand voltage:1000V AC/min
    Operating Temperature: -55ºC~+105ºC
    Material:
    Housing: Nylon 66  UL94V-0
    Contacts: Phosphor Bronze
    Plating: Tin 50u" over 100u" nickel
