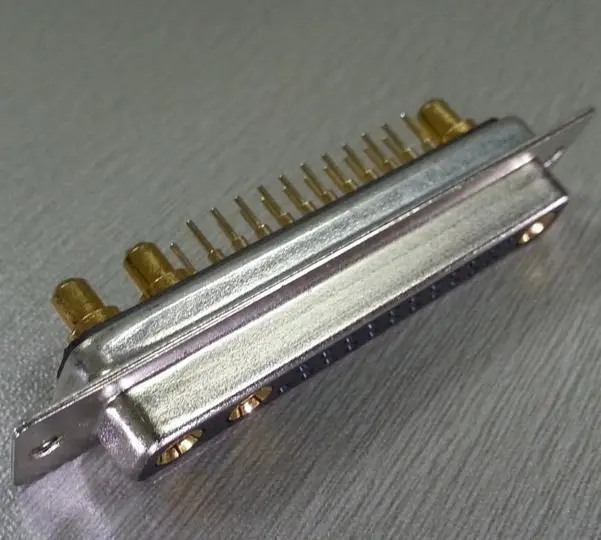

KLS1-BIG16B-25W3 25W3 High current D-SUB PCB Female & Male
25W3 High current D-SUB PCB Female & Male
Order Information
KLS1-BIG16B-25W3-M-40A-1U-W-W
BIG16B-PCB type
25W3-No.of pin
M-Male F-Female
40A-Current Rating 40A & 10A 20A 30A
1U-Contact plating Gold 1u" & 3U-3u"
W-With Nuts N-Without Nuts
W-With Fixed post N-Without Fixed post
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Copper alloy
Contact plating: Gold 1u" or 3u"
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Voltage Rating: 300V
Current Rating: 10A 20A 30A 40A
Insulator Resistance: 2000M ohms min
Contact Resistance: 10m ohms max
Durability: 500 cycles
Operating Temperature: -55ºC~+105ºC
