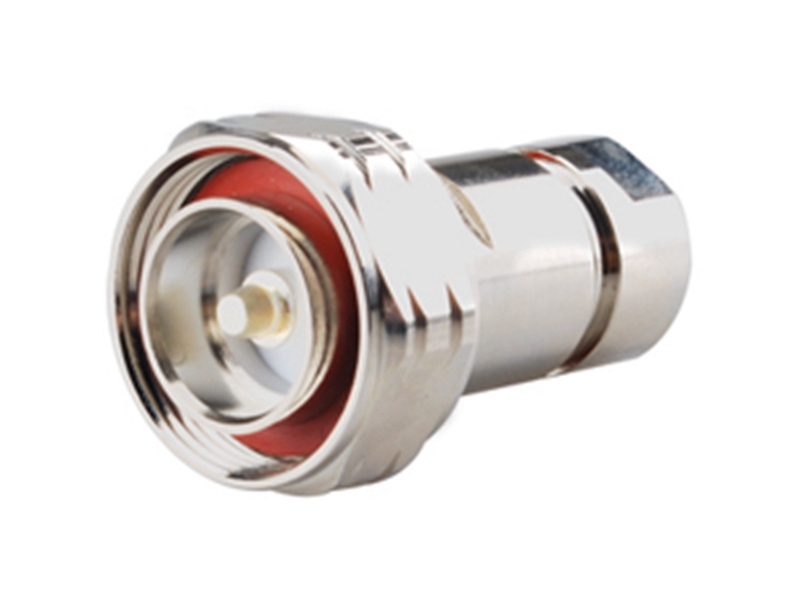

KLS1-L29007 7/16 Connector for Corrugated copper 1/2'' cable
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-L29007 7/16 Connector for Corrugated copper 1/2'' cable
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-L29007 7/16 Connector for Corrugated copper 1/2'' cable
1- Center Contact: Brass,Silver-plated
2- Body-diecast: Brass,Nickel-plated
3- Insulation: PTFE
4- Crimping suite: copper alloy, nicked or Gold-plated
5- Electrical
Impedance: 50 Ω
Frequency Range:6 GHz Max.
Insertion loss:≤0.35dB,DC-6GHz
Insulation resistance:≥1000mΩ
Voltage Rating: 2700 volts
Withstand Voltage:4000V
V.S.W.R:＜1.3
Insulation resistance: 5000 MΩ Min.
Contact resistance:
Centre contact:0.4 mΩ
Outer conductor:1.5 mΩ
6-Mechanical
Mating: M29x1.5 threaded coupling
7-Durability(mating): 500 cycles Max.
8-Temp.range -40°C~85°C
Cable Type: Corrugated copper 1/2'' cable
