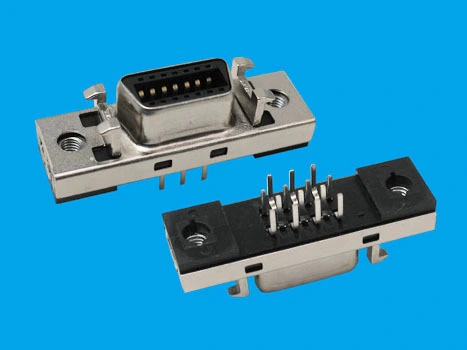

    KLS1-MDR-005 SCSI Connector Female PCB Mount Type

    SCSI Connector Female PCB Mount Type

    Order Information
    KLS1-MDR-005-XX-F-B-W
    XX-No.of pin (14,20,26,36
    ,50,68P)
    F-Female
    B-Black  W-White
    W-With Latch block   W/0-Without Latch block

    Features:

    Haif pitch 1.27mm(.050") sereis
    Assem hood: with ABS plastic (steel inner shell)or Die-Cast metal
    Fully EMI/RFI shilded

    Meterials:

    Hood:  Plastic ABS PA-769
    Inner shell:steel,Nickel plated
    Front Shell: Steel nickel plated over copper

    Electrical:

    Current Rating: 1Amp
    Insulation Resistance: 500MΩ/Min
    Withstanding Voltage: AC 500V/Min
    Contact Resistance : 35mΩ MAX
    Temperature Range: -55℃~ 105℃

    SIZE:
    KLS1-MDR-005 SCSI Connector Female PCB Mount Type 2
    KLS1-MDR-005 SCSI Connector Female PCB Mount Type 3
