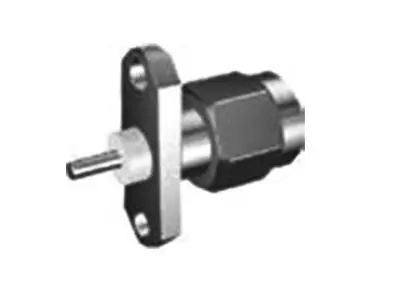

KLS1-SMA-JFD23 RF COAXIAL CONNECTOR,SMA
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-SMA-JFD23 RF COAXIAL CONNECTOR,SMA
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-SMA-JFD23 RF COAXIAL CONNECTOR,SMA
Electrical Specifications:
Impedance: 50 Ω
Frequency Range Semi-rigid cable: 0-18 GHz
Flexible cables: 0-12.4 GHz
Working Voltage: 335V max
Withstand Voltage 1000V rms
Contact resistance
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation resistance ≥ 5000 MΩ
Durability(mating) ≥500（cycles）
Temperature Range:-65～+165°C (PE Cable -40～+85°C)
Material:
shell brass gold plated
contact pin brass gold plated
socket beryllium gold plated
elastic contact beryllium gold plated
insulator PTFE
crimping suite copper alloy nickel or gold plated
o-ring sealing silastic
