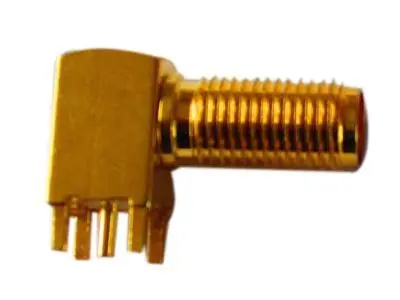

KLS1-SMA-KYWE Panel Mount SMA Connector
Electrical Specifications:
Impedance: 50 Ω
Voltage Rating : 335 volts rms.
Dielectric Withstanding Voltage : 500 volts rms.
Contact Resistance Center contact: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Temperature Range: - 55°C to +155°C
Material:
Connector body: Brass per QQ-B-626
Center contact : Brass,gold Plating
